CANBO CNB-905 Laser Safety Sensor
CANBO CNB-905 Laser Safety Sensor
CANBO®

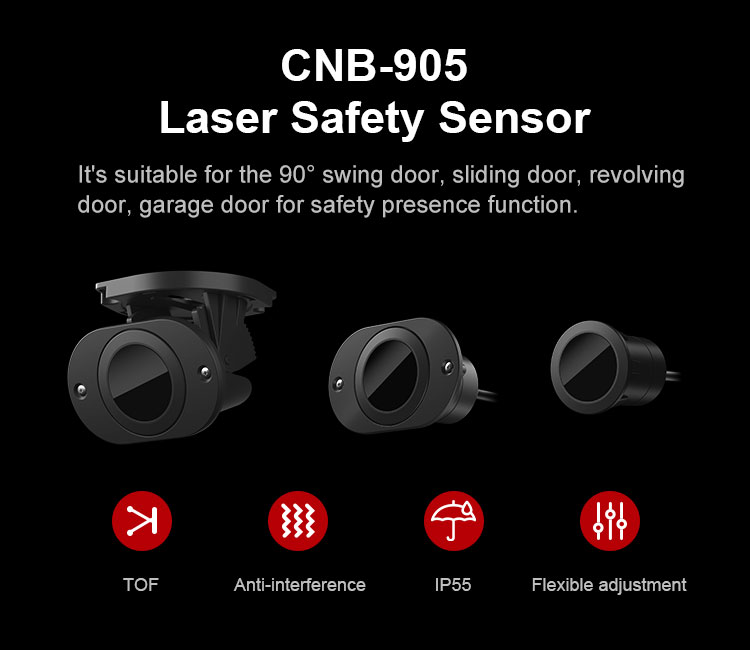

CNB-905 Laser Safety Sensor
It's suitable for the 90° swing door, sliding door, revolving door, garage door for safety presence function.

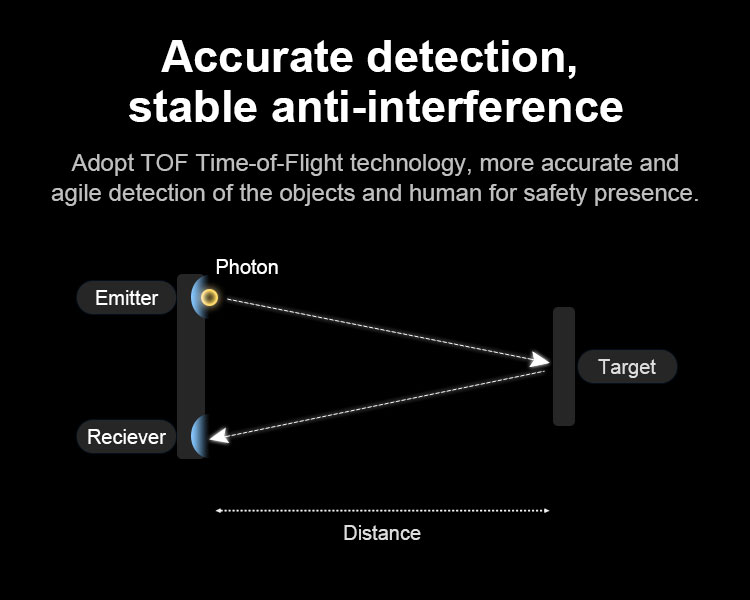

Accurate detection, stable anti-interference
Adopt TOF Time-of-Flight technology, more accurate and agile detection of the objects and human for safety presence.

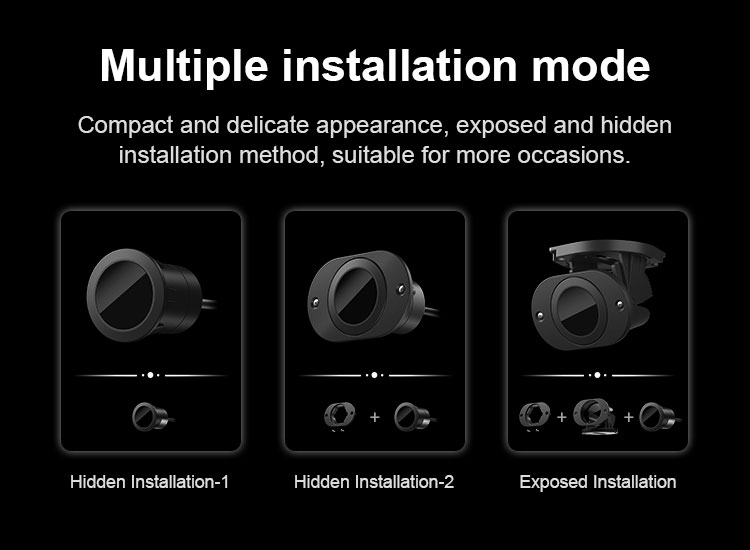

Multiple installation mode
Compact and delicate appearance, exposed and hidden installation method, suitable for more occasions.

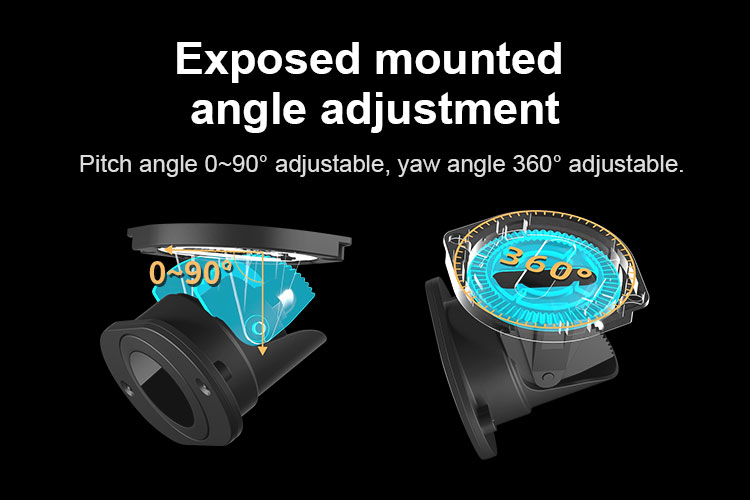

Exposed mounted angle adjustment
Pitch angle 0~90° adjustable, yaw angle 360° adjustable.
Waterproof
It can resist the interference of lights, metal and rain.

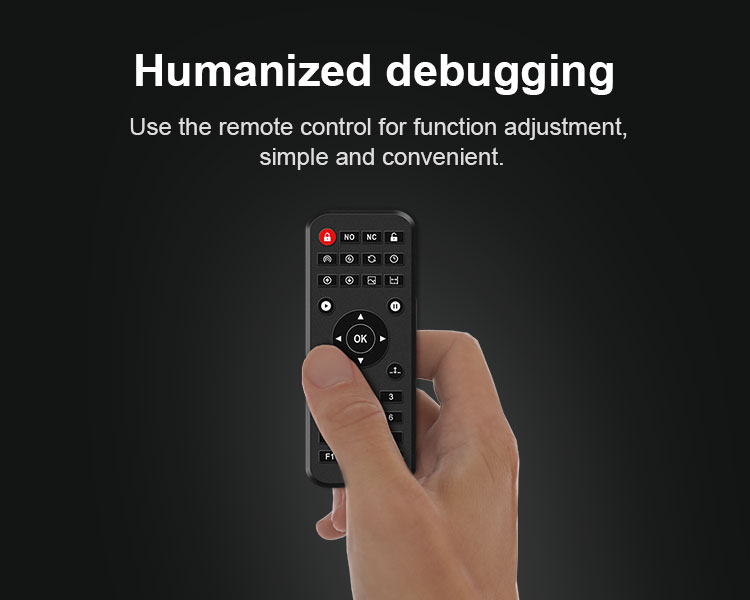

Humanized debugging
Use the remote control for function adjustment, simple and convenient.

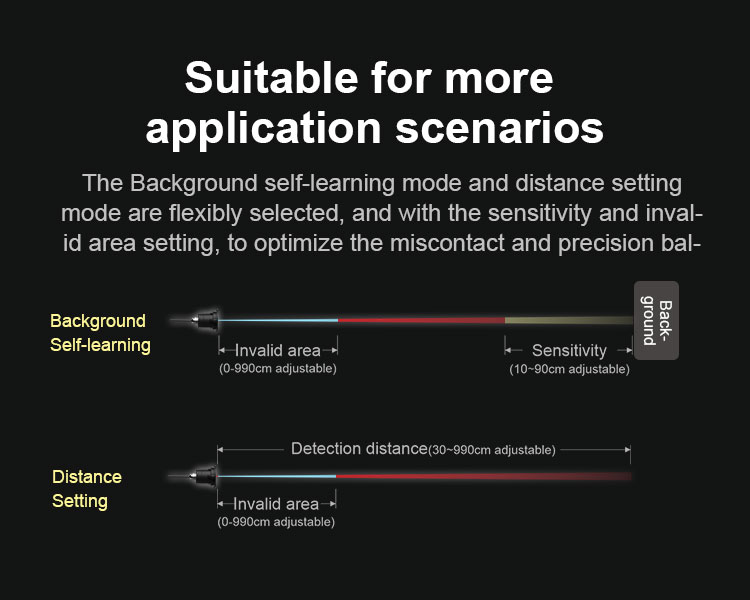

Suitable for more application scenarios
The auto background mode and distance setting mode are flexibly selected, and with the sensitivity and invalid area setting,
to optimize the miscontact and precision balance.

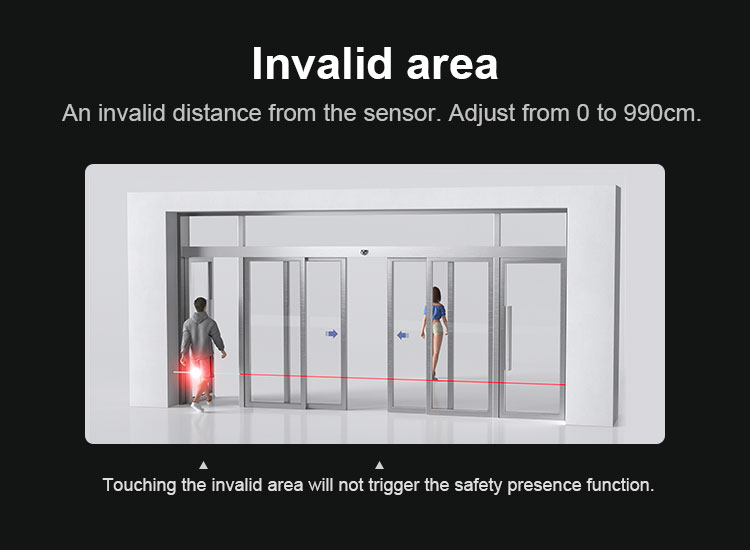

Invalid area
An invalid distance from the sensor. Adjust from 00 to 990cm.
Touching the invalid area will not trigger the safety presence function.

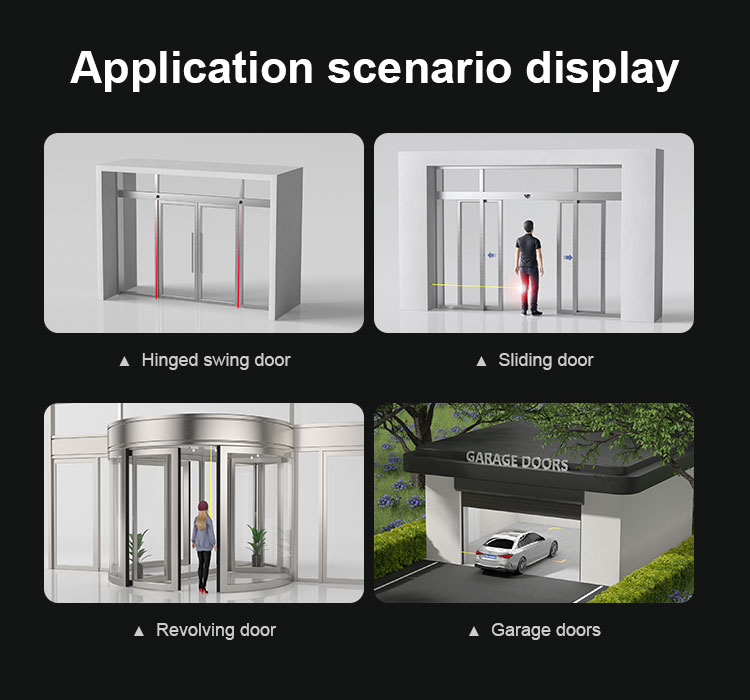

Application scenario display

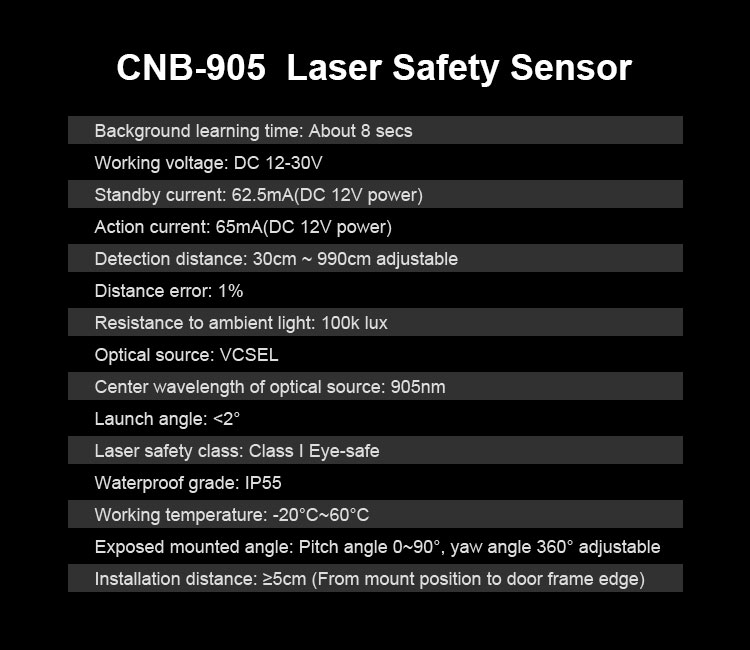

Technical parameters
| Background learning time: | About 8 secs |
| Working voltage: | DC 12-30V |
| Standby current: | 62.5mA(DC 12V power) |
| Action current: | 65mA(DC 12V power) |
| Detection distance: | 30cm ~ 990cm adjustable |
| Distance error: | 1% |
| Resistance to ambient light: | 100k lux |
| Optical source: | VCSEL |
| Center wavelength of optical source: | 905nm |
| Launch angle: | <2° |
| Laser safety class: | Class I Eye-safe |
| Working temperature: | -20°C~60°C |
| Exposed mounted angle: | Pitch angle 0~90°, yaw angle 360° adjustable |
| Installation distance: | ≥5cm (From mount position to door frame edge) |
